2-in-1 function

Thermal performance testing for solar air collector; Pressure drop test; Time constant test; Visual inspection; Internal pressuretest; Rupture or collapse test; Stagnation temperature; Exposure test; Externalthermal shock; Internal thermal shock; Rain penetration; Freeze resistance; Mechanical load; Impact resistance test using steel ball; Final inspection. All above listed tests of the standard EN12975-1:2006+A1:2010 and ISO 9806:2017 were passed successfully in accordance with the criteria.

The Solar Keymark is a voluntary third-party certification mark for solar thermal products, demonstrating to end-users that a product conforms to the relevant European standards and fulfills additional requirements. It is widely spread across the European market and beyond. The Solar Keymark is a quality label.

Standard function

Advantage of Nakoair® Solar Air Heater
Sep 27 2018 6 Comments

Advantage of Nakoair® Solar Air Heater

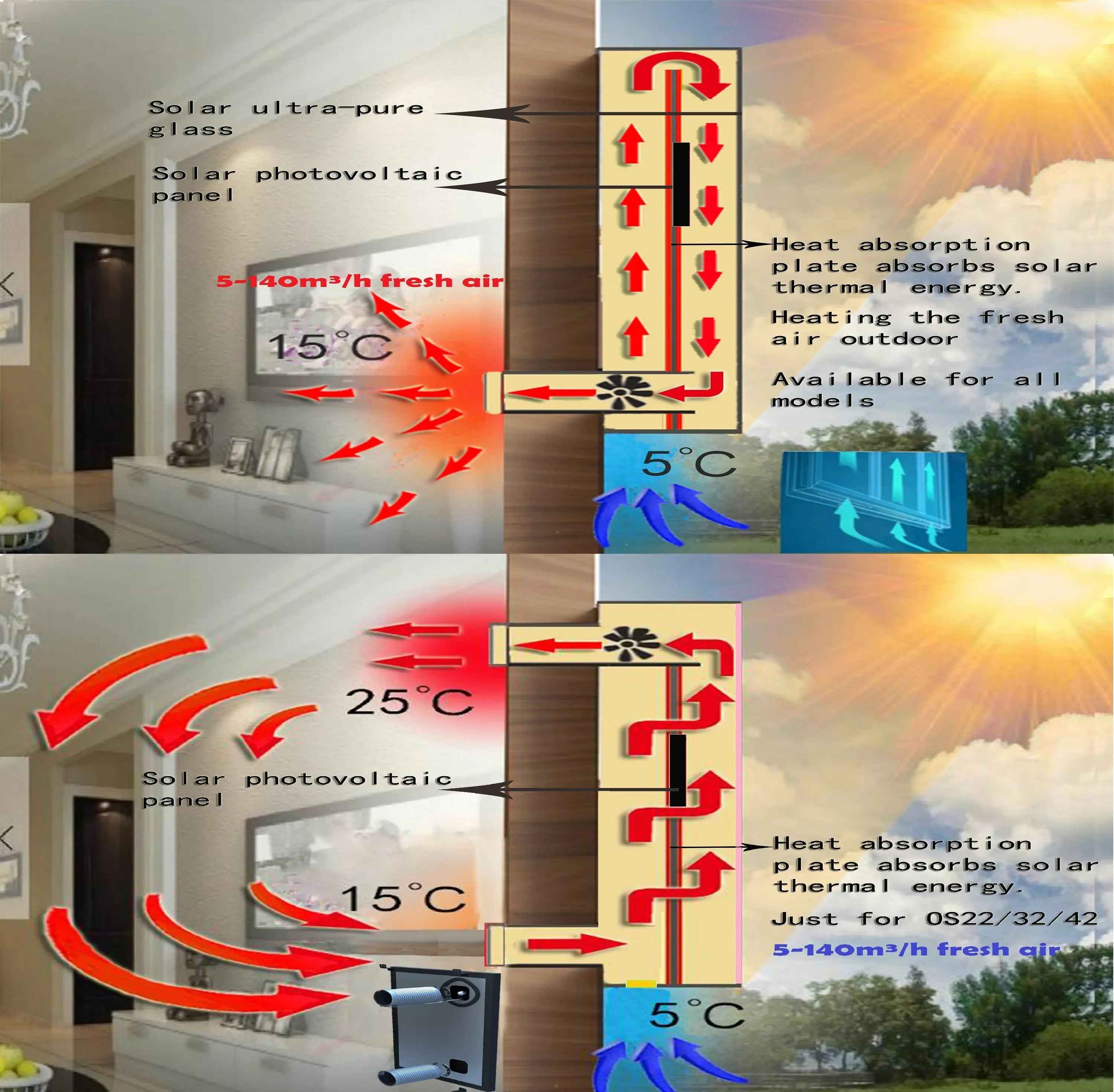

1. Unique feature: Indoor air internal circulation mode:  heating indoor air internal circularly. Applicable to OS22/32/42.

Heating indoor air mode, can keep heating the room air, and keeps away from any wet or cold or smog air. When people at home or when in the winter morning, just open the room air inlet; when people out or at noon, close the room air inlet and introduce fresh air to ventilate and dehumidify.

2. Special heating absorption board:

Corrugated special anodic aluminum oxide, texture nano heat insulation coating, high absorption, low reflection. Solar absorbance of selective absorbing coating: 0.92; Hemisphere emittance of selective absorbing coating: 0.12.

3Solar photovoltaic panels are produced with well-known brand cell in high quality, high photoelectric conversion efficiency, low conversion efficiency attenuation rate, with life expectancy for 20 years. Collectors can be used to dry crops such as vegetables, fruits and grains. The service life of photovoltaic panels will not be affected even under high temperature and strong light in tropical and subtropical regions.

4. Instead of hydraulic fan, double ball fan is adopted, with longer lifespan, low temperature resistant. SUNON from Taiwan is the most well-known fan brand in the world.

5. Under sunlight, the air inside the Nakoair® air collector flows along both sides of the heat absorbing plate and can absorb the heat well from the absorbing plate.

6. Air vent: it is possible to be opened and closed automatically, with 8mm thermal insulation cotton inside, good insulation effect. Automatically turns off when the fan is not running.

7. Sealing strips are with high-quality silicone rubber: anti-UV, climate-resistance, better appearance. Frame: exclusively for open air, anti-UV texture coating, anti-UV outdoor screws.

8. Low iron solar tempered glass is with big intensity, high elasticity, the transmission is excellent. Lower diffuse reflection can prevent heat loss.

Glass is much longer than polycarbonate panels, which are only 10 years, and after sunlight irradiation, it becomes yellow and solar transmittance goes extremely lower.

9. Fresh air inlet of solar air heater standard PET film: stops cold air, moisture, condensation of air humidity, and back draft (when not working).



27 September 2018
D Collins

I live in a damp area with a lot of cloudy days. Would a small panel be able to function in keeping a garden room dry and warm on cooler days. Would I need a lot of sunlight for the panel to work? Thank you.

27 September 2018

I am interested in your product. I have a log home and we get about 200 days of sunshine. The winters average -10 to -30 celsius. Would this be a benefit for me?

27 September 2018

je voudrai savoir si le fait d’avoir environ 3 mètres de tuyaux ,installation sur le toit ,le chauffage fonctionnera bien.

27 September 2018
Andrew Thornhill

Hi, interested in this panel to help improve enviroment for a static bus used as a teaching resource in a primary school. its a Reading Bus! We are looking for dehumidifcation, warming and cooling – could this panel do all or would we need to add a PV roof vent to help on hot days?
Thanks Andrew

27 September 2018
Genadij Sapkin

Good day,

What is the maximum heating temperature could be reached when to install OS 32 .
