2-in-1 function


Thermal performance testing for solar air collector; Pressure drop test; Time constant test; Visual inspection; Internal pressuretest; Rupture or collapse test; Stagnation temperature; Exposure test; Externalthermal shock; Internal thermal shock; Rain penetration; Freeze resistance; Mechanical load; Impact resistance test using steel ball; Final inspection. All above listed tests of the standard EN12975-1:2006+A1:2010 and ISO 9806:2017 were passed successfully in accordance with the criteria.


The Solar Keymark is a voluntary third-party certification mark for solar thermal products, demonstrating to end-users that a product conforms to the relevant European standards and fulfills additional requirements. It is widely spread across the European market and beyond. The Solar Keymark is a quality label.

Standard function

Air collector OS42 Solar air heater, air ventilator with LCD thermostat:heating air Conditioner Conditioning Exhaust Fan Ventilator Thermal Panel Dehumidifier Heat Pump Ventilation Dehumidification water Attic roof vent gable



€899.00

41 In Stock


 Product details:

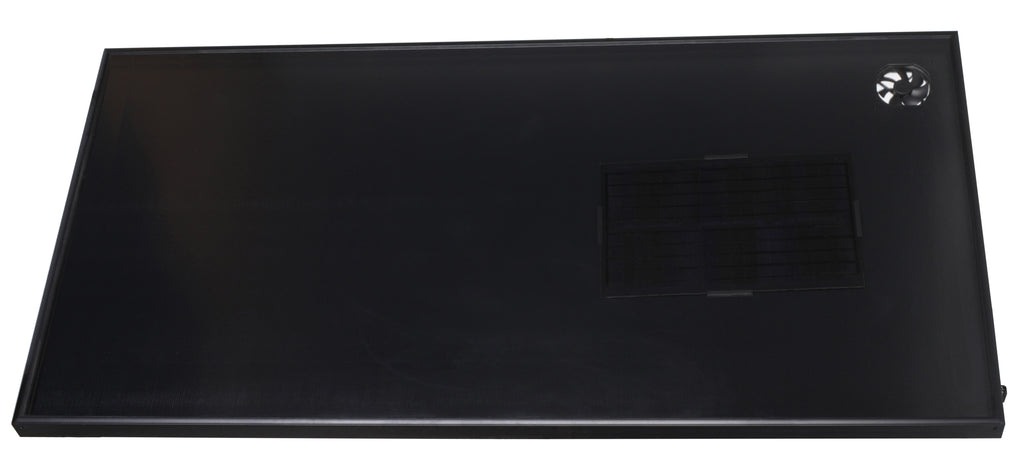

OS42 solar air heater

2-in-1 Function:

1.Heating outdoor fresh air, applicable in Spring, Autumn and Winter;

2. Heating indoor air internal circularly. This mode is the best way to heat the room. Applicable to OS22/32/42.

Model No.

OS42

Appro room area

70-100m2

Maximum air volume

135m3/h

Time for air change

Approximate 2 hours

Heating efficiency

72%

Sun intensity performance(w/h/set )

1380W

Total Annual Heating Delivered (9months)

720 kWh/m2

Estimated energy supplement

1418kWh/unit/year

Temperature rise approx.

250 C

Noise Level

45db

Solar photovoltaic panel power

28watt

Fan

SUNON 12V, 5.4 watt

Special heating absorption board

Special anodic aluminum oxide, texture nano heat insulation coating, high absorption, low reflection.

Frame

Tailored for open air, anti-UV texture coating

Coating

Low iron patterned solar tempered glass, up to 92% transmittance

Product size

197x100x6cm

Carton size

204x106x9cm

Net weight

26kg

Gross Weight

34kg

OASES solar air heater plant  OASES solar air heater plant

Oscar Science & Technology Co., Ltd. is a professional manufacturer of solar air collector/ heater, solar ventilator etc. Nakoair® Solar with LCD thermostat, provide you with a healthy and warm home and automatically processes indoor air. Simple operation, thoughtful air management expert!

Owning Patent and certificates as ISO9001:2015, German TUV NORD CERT; European Solar Keymark certification(ISO9806); TÜV Rheinland test reports etc.

With a developing and testing labs, tests are strictly applied as air volume, temperature difference of different models in different conditions, also insulation, UV-resistance, climate-resistance, water-proof to various materials such as coating and silicone. Thus Nakoair® is supplying products in better quality.

Innovatively adopting high-tech material like low iron ultra-pure glass and Special texture nano insulation coating etc, the company dedicates to sustainable development and innovations.

Nakoair® solar air heaters are sold to many countries like UK, Denmark, Germany, Czech, Australia, New Zealand, Canada, America etc. In the past years, with continuous improvement and innovation, Nakoair® solar air heater is popular due to its high performance and competitive price.
